OpenID Connect (OIDC)

Introduction

OpenID Connect is an open standard for single sign-on, identity and access management. With ownCloud it can be used for user authentication and client authorization against an external identity provider(IdP).

Benefits of using ownCloud with OpenID Connect

  • Increased security by shifting user authentication to an external identity provider.

  • Seamless integration into single sign-on (SSO) environments as well as with third party products.

  • Centralized client management within the identity provider.

  • Enterprise-grade security through the use of authentication security features (e.g., multi-factor authentication) and policies (e.g., automatic token expiration on certain conditions) provided by identity providers.

ownCloud only supports one configured identity provider which is then valid for all requests.

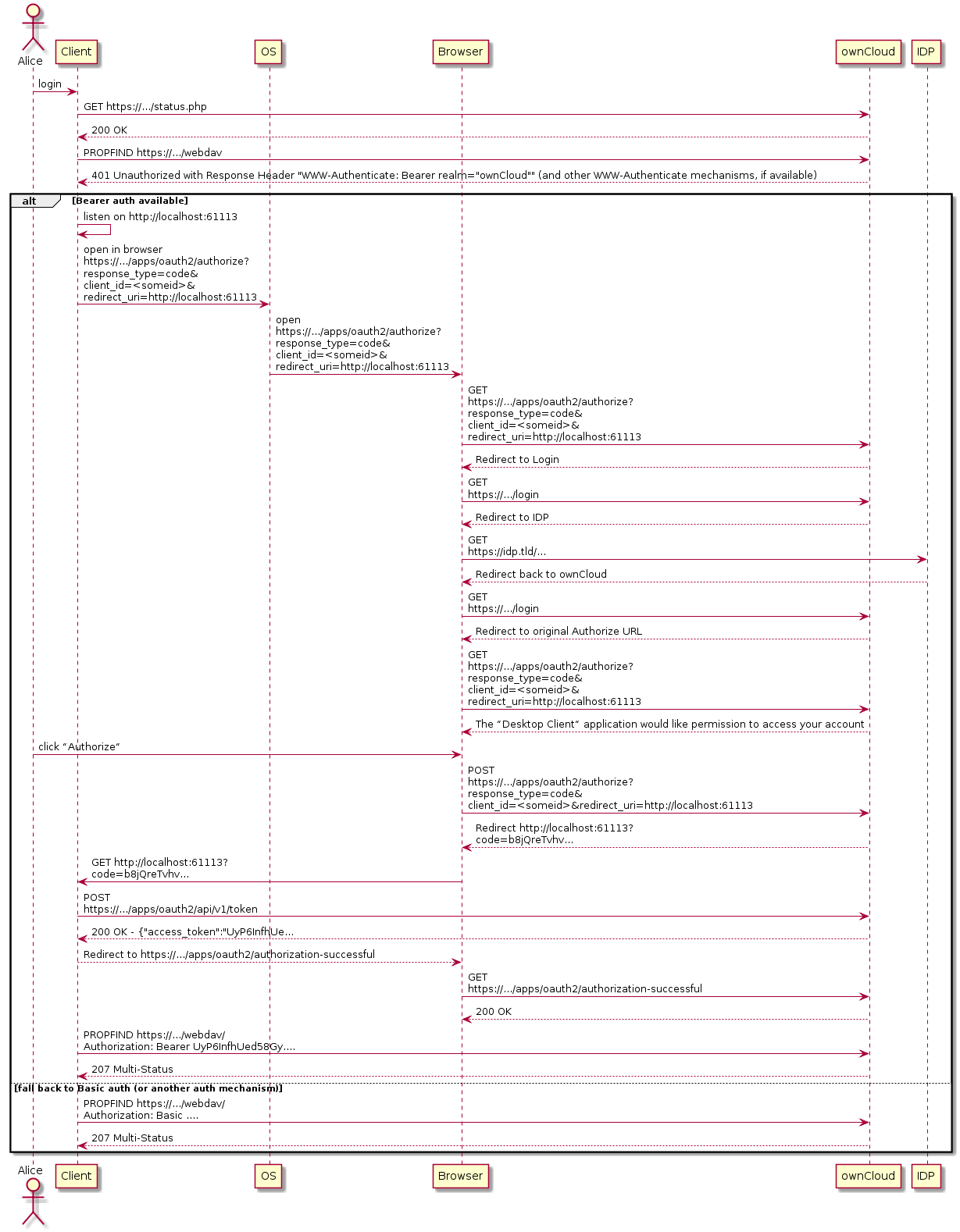

Click on the OAuth code flow sequence diagram link to get more details on the flow sequence.

Supported Identity Providers

ownCloud Classic can work with identity providers (IdP) that support OpenID Connect. There are many identity providers available and the OpenID Connect implementations vary a lot in terms of supported features as well as configuration needs.

The currently supported products are

(1) …​ Note that ADFS does not support client-secrets that contain an _ (underscore).

Please get in touch with ownCloud Consulting if you need help with a specific identity provider product.

Prerequisites

Setting up ownCloud Classic to work with OpenID Connect requires a couple of components to work together:

Set Up Service Discovery

  1. Webserver Service Discovery Information

    In order to allow the ownCloud Clients (Desktop/Android/iOS) to make use of OpenID Connect, the webserver serving ownCloud Classic needs to provide service discovery information under the following static path:

    https://cloud.example.com/.well-known/openid-configuration

  2. App Service Discovery Information

    When enabled, the OpenID Connect App provides the service discovery information on the endpoint:

    https://cloud.example.com/index.php/apps/openidconnect/config

  3. Webserver Rewrite Rule

    To make the endpoint available under the static service discovery path, it is recommended to set the following environment variable:

    OWNCLOUD_ENABLE_OIDC_REWRITE_URL=true

    This variable sets the following rule in the embedded .htaccess file on container startup:

    RewriteRule ^/.well-known/openid-configuration /index.php/apps/openidconnect/config

  4. Once service discovery is available as described above, the ownCloud clients will attempt to connect via OpenID Connect.

Access Token Audience

An access token is accepted only if it names ownCloud, and which claims count for that depends on the app version:

  • openidconnect 2.4.1, the current release on this server line, requires the configured client-id to appear in the token’s aud (audience) claim. Nothing else identifies ownCloud.

  • openidconnect 2.4.2, in preparation, additionally accepts a token whose azp, appid or client_id claim carries the client-id, and adds the audience parameter for declaring what your provider really puts in aud. aud is still compared first and a match there ends the check; the three client claims are the fallback for when it does not match, and only the most authoritative one the token actually carries is consulted, in that order. So a token that reaches the fallback with an azp naming a different client is refused even when it also carries a client_id naming ownCloud.

On 2.4.1 the check reaches only access tokens that are JWTs. If your provider issues opaque access tokens that ownCloud verifies through a token introspection endpoint, the audience is not checked at all there - 2.4.2 is the release that starts checking it on that path too, and it accepts the introspection response’s client_id in the same way.

2.4.2 also refuses a JWT access token that carries no usable exp claim, with Access token has no expiry - RFC 9068 section 2.2 requires one, and without it the expiry is never checked at all. Neither audience nor anything else rescues that, and nor does it rescue the type allowlist further down. An introspection response may still omit exp, which RFC 7662 section 2.2 permits.

That difference matters because an access token’s aud identifies the resource server the token was minted for (RFC 9068 section 3), not the client that asked for it. Plenty of providers therefore never put the ownCloud client-id there, and on 2.4.1 those cannot authenticate at all: the login itself succeeds, and the next request logs the user out again.

If you are seeing exactly that - login works, the first click logs you out - with Keycloak, ADFS, Azure AD issuing v1.0 tokens, or OneLogin with API authorization, this is why. The On 2.4.1 column below gives the options that exist today; openidconnect 2.4.2 removes the need for every one of them.
Identity provider What lands in the access token’s aud On openidconnect 2.4.1 On openidconnect 2.4.2

Keycloak 1

Nothing - there is no aud claim unless an audience mapper is configured for the client. azp carries the client id.

Add the audience mapper described below. Without it no access token is accepted.

Works as it is. Without a mapper audience cannot be used - with no aud claim, no value can match; with the mapper added it can be set to the client id.

Microsoft Azure AD / Entra ID, v1.0 tokens 2

The Application ID URI, for example api://<client-id>. There is no azp; the client is named by appid. This is the default, see the Azure setup page.

Switch the app registration to v2.0 tokens (requestedAccessTokenVersion: 2 in the manifest), which puts the client id into aud.

Works as it is. Set audience to the Application ID URI to bind tokens to ownCloud’s API.

Microsoft Azure AD / Entra ID, v2.0 tokens 2

The resource application’s client id, which is ownCloud’s own client-id in the setup described here. azp carries it as well.

Works as it is.

Works as it is. audience may be set to the client-id.

Microsoft ADFS 2

The relying party identifier, rendered as microsoft:identityserver:<identifier> unless the identifier is already a URL. appid carries the client.

No remedy - ADFS cannot be made to put the client id into aud. 2.4.2 is the fix.

Works as it is. Set audience to that exact value, including case, to bind tokens to ownCloud.

Kopano Konnect 3

The client id.

Works as it is.

Works as it is.

OneLogin, with API authorization 2

The configured API audience URI or URIs, never the client id. azp carries the application id.

No remedy through ownCloud; either stop using API authorization for this app or wait for 2.4.2.

Works as it is. Set audience to the API audience URI to bind tokens to that API.

PingIdentity PingFederate, cidaas

Depends on how the access token is configured in the product - not verified by ownCloud.

If the access tokens are JWTs, decode one: it works when aud carries the client-id, and cannot when it does not. Opaque tokens verified through introspection are not checked on 2.4.1 and work either way.

Works as it is if a claim names ownCloud as the client; otherwise set audience to what aud holds.

(1) Verified against Keycloak 26.0 with a confidential client and no audience mapper.
(2) From the provider’s own documentation and from tokens reported by administrators.
(3) From the Konnect sources, which pass the client id as the access token audience.

What the Log Says

A rejected audience is logged with both values:

Token audience does not match the expected audience: token "aud" is "...", expected one of ["..."]

The value reported as token "aud" is what your provider sends, and therefore exactly what belongs in audience if you decide to set it - unless the line below precedes it:

Token was issued to another client: "azp" is "...", this relying party is "..." ...

From 2.4.2 that line says the rejection was decided by a client-naming claim rather than by the audience, so audience is not what needs changing: the token genuinely belongs to another client of the same provider. It is followed by the audience mismatch above, which in that case names an aud that was never the problem.

From 2.4.2, a token accepted on its client-naming claim while carrying an audience you could have configured - Azure AD v1.0 tokens, ADFS, OneLogin - is recorded at level info, once per request, with the same advice. ownCloud’s default loglevel is 2 (warning), so set it to 1 (info) to see it at all:

Access token "aud" does not name this relying party, accepted because "appid" matches the
configured client-id. To have the audience enforced, set the openid-connect "audience" config
key to ...

That line is expected for those providers and does not indicate a broken setup; setting audience is what ends it. It is not written when the token carries no audience at all, as with Keycloak, because then there is nothing to put in the key - such a token is still accepted on its azp claim, unless audience is configured, in which case it is rejected and logged as a mismatch like any other.

Independently of the audience, and from 2.4.2, a token that labels its own type has to label itself an access token, or it is refused with Token is not an access token. Both the typ and the token_use payload claims count as that label, and each one the token carries has to be an accepted value - the accepted values, compared case-insensitively, being Bearer, at+jwt (RFC 9068 section 2.1), access and access_token. A token carrying typ: JWT alongside token_use: access is therefore refused on the typ. That is an allowlist rather than a list of refresh markers, so it covers refresh and offline tokens (Keycloak’s typ of Refresh and Offline, Cognito’s token_use of refresh) together with back-channel logout, registration and ID tokens on every provider that labels them. The generic JOSE media type jwt is refused too, although it says nothing about the type: a provider that stamps it into the payload stamps it on every token it signs, so accepting it would switch this check off for precisely the provider it would be meant to accommodate.

ID tokens are therefore two cases rather than one. Where your provider labels the type - Keycloak sends typ of ID, Cognito token_use of id - an ID token presented as a bearer token is refused whatever audience is set to, including not set at all. Where it puts no type claim in the payload, as Azure AD and ADFS do not, an ID token still satisfies the default expectation, because an ID token’s aud is the client-id by definition: it is accepted for as long as the client-id is an accepted audience, and setting audience to anything else - which is exactly what ADFS, Azure AD v1.0 tokens and OneLogin need - is then what rejects it, as a side effect. Where that is not an option, treat ID tokens as credentials.

When to Set the audience Parameter

None of the providers above needs it once you run 2.4.2, with the exception noted in the last table row. What it adds is a binding to the resource: with it set, a token that ownCloud’s own client obtained for some other resource of the same provider - through an RFC 8707 resource parameter, or RFC 8693 token exchange - no longer authenticates here. Set it if your provider issues tokens to ownCloud’s client for more than one resource.

What it cannot do is keep another client’s tokens out. Any token whose aud names ownCloud is accepted, whichever client requested it, and a client of the same provider can often be granted exactly that - an audience mapper of its own, or a resource parameter naming ownCloud. That is the resource-server model, it is the same before and after setting audience, and the only place to control it is the provider: decide there which clients may be issued tokens for ownCloud.

See the parameter reference for the exact semantics of the key.

Making Keycloak Send an Audience

Keycloak leaves aud out of the access token unless the client has an audience mapper. Adding one makes Keycloak send the client id, which satisfies 2.4.1 - on that version this is not optional, it is what makes a Keycloak setup work at all.

In the Keycloak admin console, go to Clients  your ownCloud client  Client scopes and open the dedicated scope named <client-id>-dedicated, then Add mapper  By configuration  Audience and set Included Client Audience to your ownCloud client, leaving Add to access token on.

The same through kcadm.sh, with CLIENT_UUID the internal id from kcadm.sh get clients -r <realm> -q clientId=<client-id> --fields id:

kcadm.sh create clients/CLIENT_UUID/protocol-mappers/models -r <realm> \
  -s name=oc-audience \
  -s protocol=openid-connect \
  -s protocolMapper=oidc-audience-mapper \
  -s 'config."included.client.audience"=<client-id>' \
  -s 'config."access.token.claim"=true'

Afterwards the access token carries "aud": "<client-id>", and audience may be set to the same value to have it enforced.

General Example Setup

All IdPs have their own setup, but often share common ways of configuring things. Although not identical, the Kopano Konnect example may be a good starting point for the specific configuration of your setup. As Microsoft with Azure AD is different, it has its own example section.

Example Setup Using Kopano Konnect

Follow this link to see Example Setup Using Kopano Konnect.

Example Setup Using Microsoft Azure AD

Follow this link to see Example Setup Using Microsoft Azure AD.

Example Setup Using OneLogin

Follow this link to see Example Setup Using OneLogin.

ownCloud Desktop and Mobile Apps

ownCloud Desktop and Mobile Apps detect whether OIDC is available (service discovery) and use this login method when a new account is created.

The Desktop and Mobile apps have a default client ID and secret hard-coded, which are used for ownCloud’s oauth2 app. When using Kopano as IdP, it does not pre-define a client ID and secret. You can use the default ones of the client to configure Kopano properly. With some IdPs like MS-Azure, these and other required parameters come from the IdP and must be coded into the client. Note that each IdP has different requirements. Get in touch with ownCloud for a branding subscription to customize the clients according to your needs.

Client IDs, Secrets and Redirect URIs

All IdPs can use ownCloud’s default client IDs, secrets and redirect URIs with the exception of Microsoft Azure AD, which uses a different approach. Here is the data necessary for the configuration.

Client ID

Source Key

Server/Web

as specified via environment variables

Desktop

xdXOt13JKxym1B1QcEncf2XDkLAexMBFwiT9j6EfhhHFJhs2KM9jbjTmf8JBXE69

Android

e4rAsNUSIUs0lF4nbv9FmCeUkTlV9GdgTLDH1b5uie7syb90SzEVrbN7HIpmWJeD

iOS

mxd5OQDk6es5LzOzRvidJNfXLUZS2oN3oUFeXPP8LpPrhx3UroJFduGEYIBOxkY1

Client Secret

Source Key

Server/Web

as specified via environment variables

Desktop

UBntmLjC2yYCeHwsyj73Uwo9TAaecAetRwMw0xYcvNL9yRdLSUi0hUAHfvCHFeFh

Android

dInFYGV33xKzhbRmpqQltYNdfLdJIfJ9L5ISoKhNoT9qZftpdWSP71VrpGR9pmoD

iOS

KFeFWWEZO9TkisIQzR3fo7hfiMXlOpaqP8CFuTbSHzV1TUuGECglPxpiVKJfOXIx

Redirect URIs

Source Redirect URI 1

Desktop ≤ 2.8

http://localhost

Desktop ≥ 2.9

http://127.0.0.1

Android

oc://android.owncloud.com

iOS

oc://ios.owncloud.com

(1) See the following note when using Microsoft Azure AD and 127.0.0.1 as redirect URI.

Default Scope and Prompt Parameters

ownCloud desktop and mobile apps come with default scope and prompt parameters. These parameters can be modified in custom branded builds. See the OIDC Authentication Request specs for more details about the parameters.

Parameter Default value

scope

openid offline_access email profile

prompt

select_account consent
(for Android you need app version 4.0+)

Migrate Clients from Basic Authentication to OIDC

If your users are logged in to their desktop and mobile clients via basic authentication (username/password) against ownCloud Classic and you are not using OAuth2 to authorize the ownCloud clients, a migration to OIDC can be conducted as follows:

  1. Make sure you have a working OIDC configuration based on the above sections.

  2. Enable the OpenID Connect App.

  3. Enable token-only authentication.

Once the OpenID Connect App is enabled, token-only authentication is enforced and service discovery is properly set up, the ownCloud clients will ask the users to re-authenticate. After a successful re-authentication, the migration is done.

To connect legacy clients, users have to generate special app passwords (tokens).

Migrate Clients from OAuth2 to OIDC

If you use OAuth2 for client authorization, a migration to OIDC can be conducted as follows:

  1. Make sure you have a working configuration based on the above sections.

  2. Enable the OpenID Connect App (while having the OAuth2 App still enabled).

  3. Disable the OAuth2 App.

Once the OAuth2 App is disabled and service discovery is properly set up, the ownCloud Clients will ask the users to re-authenticate. After a successful re-authentication, the migration is done.

Migrate Web Login (and Client Login) from SAML to OIDC

If you are using SAML/SSO, a migration to OIDC depends on your identity provider and is not straight forward. Please get in touch with ownCloud Consulting to plan the migration.
